C/FX/FY Series

CYZ
24ton

FXZ
24ton

FYH
30ton

CYH
38 ton

Engine
6WG1E6N VGS Turbo Engine

Transmission
MJT7U, 7 Forward 1 Reverse, Manual

Max. Output
420ps / 1,800rpm

Frame Width
850mm

Max. Torque
190kg-m / 1,300rpm

Emission Standard
Euro VI

Brake System
Front & Rear Drum, Full Air, Dual Circuit, Wedge Type, Brake Auto Adjuster, Anti-lock Brake System (ABS)

Steering
Recirculating Ball with Power Assisted

Performance

Engine
6WG1E6N VGS Turbo Engine, Max. Output: 420ps / 1,800rpm

SCR System
Selective Catalytic Reduction (SCR) System helps to reduce diesel engine emissions.

EGR System
Exhaust Gas Recirculation (EGR) mixes fresh air and exhaust gas into the maximum combustion temperature and reduces emission level.

Common Rail System
Electronically controlled Common Rail fuel injection system allows fuel to be injected with more accurate timing and enhances fuel-efficiency

VGS System
The Variable Geometric System (VGS) is an adjustable mechanism in the turbo entry area maximizes low-speed torque and acceleration,boosting fuel economy and reducing particulate matter.

Interior

Safety

The cab and frame are virtually impervious to rust due to extensive anti-corrosion treatment and use of special materials.

3 Point Seat Belt design to secure driver and passenger against harmful movement that may result during a collision or a sudden stop.

Hill Start Aid is a driver assistance system, it helps the vehicle standing on the slope and drive off again easily.

Anti-lock Braking System operates by preventing the wheels from locking up during braking, thereby maintaining tractive control with the road surface.

Feature

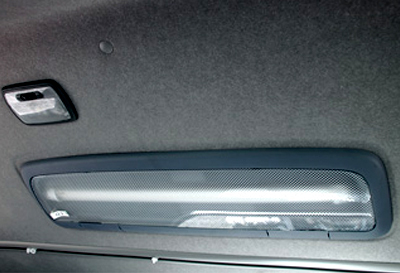

The fluorescent lamp and spot lamp for better reading inside the Cab.

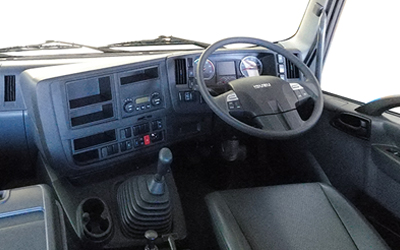

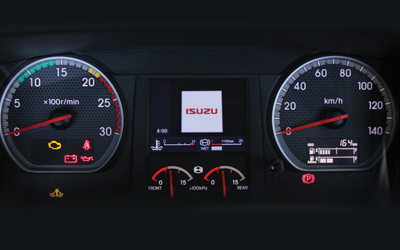

Display panel easy to reach for smoother driving.

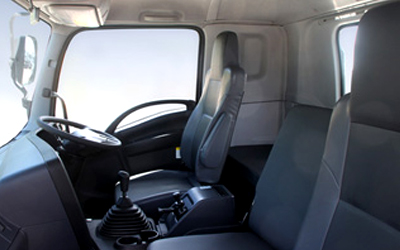

The Driver Cabin Specifically designed to ease driver fatigue and provide a productive working environment, the cab features ergonomic seating and a wide variety of storage solutions.
